E-Gear
E-Gear Dog Harness
E-Gear E-TAC Dog harness is a brand-new design to fit K9 tactical operation use for sea, land and air. Modular with Molle design enables easy switch among different modes depending on needs, thus maximizes efficiency and mobility.
«Main Features«
- 3-mode usage: Sea / Land / Air -
- Molle system to equip different modules and gears (e.g. floating devices, ballistic panels or camera) -
- Tailor made size, with adjustable webbing -
- Mil spec materials -
- Neoprene for breathing -
- Thin harness to give a favorable wearing for dogs -
-Widely used by government users -
«Materials«
Outside: 1000D Cordura ClothInterior Lining & Zip Cover: 420D Cordura ClothSurrounding Breathability: Nylon U.S. MeshComfort & Insulation: Neoprene 3-5mm (Double-Sided)Floating Device & Removable MOLLE System: EVA 3mm x3 [*Less EVA for small dog]Safety Strap (wrapping the chest in one strap): NylonBuckles & zips: ITW, Nifco, Paragear, YKK
«Various Modular Versions«
a. SEA
b. LAND 2.0
c. LAND 3.0 (Armour Insertable)
d. AIR (Compatible with Seat Strap)
«User Photos«
«Other Options«
***This product is by order item and need exact measurement of dog size for production***
***Please consult our sales team for more details***
ADD TO QUOTE
View product
E-Gear

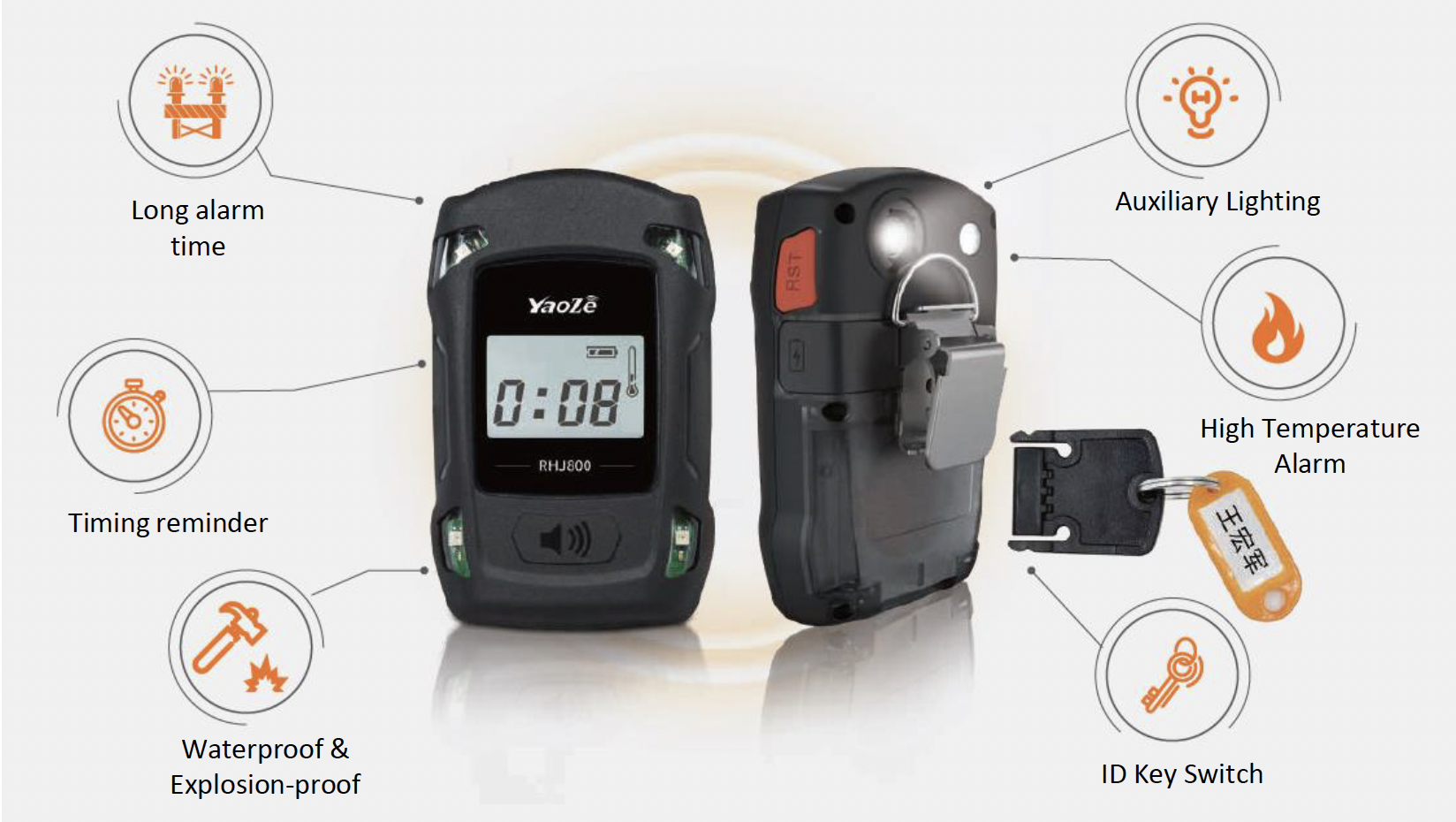

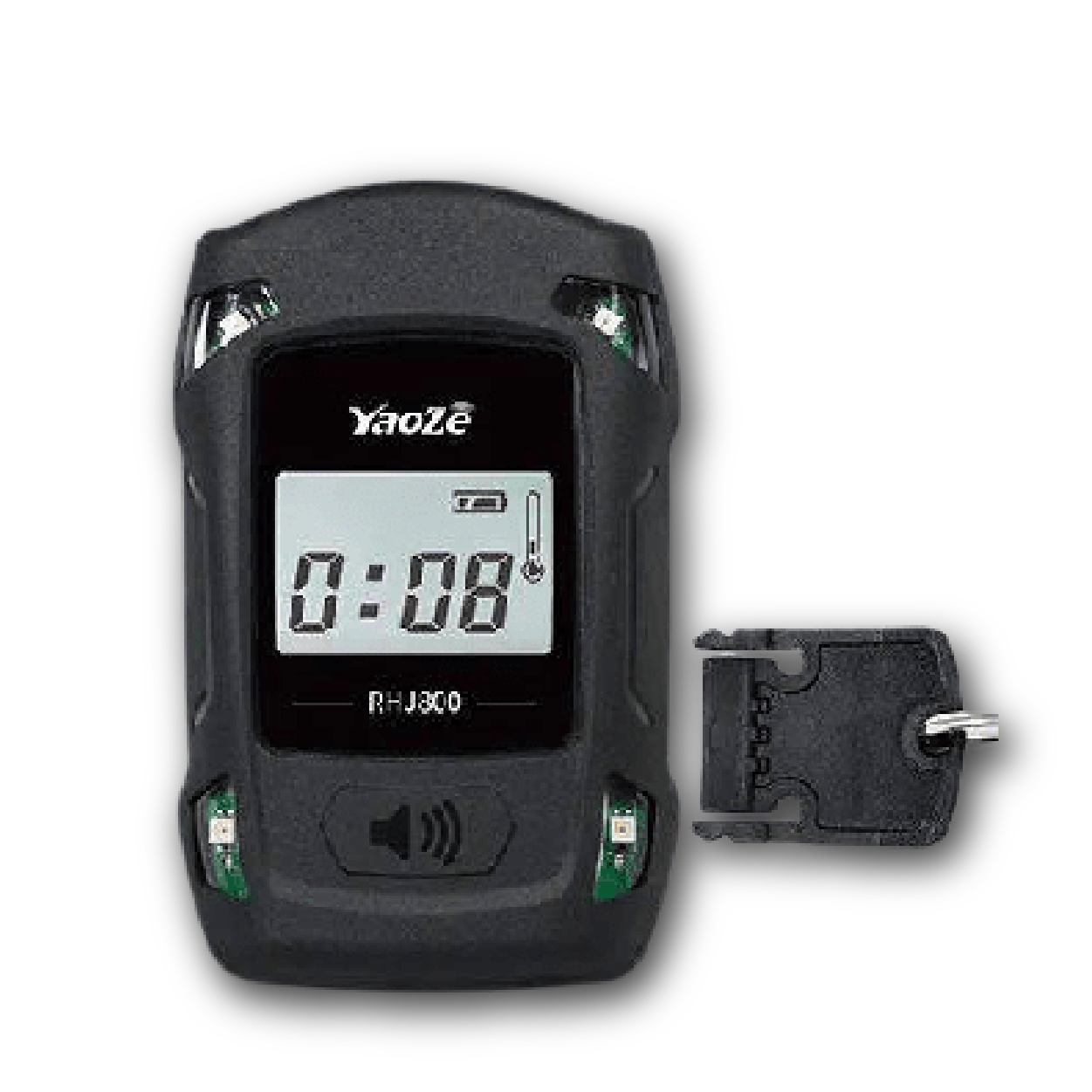

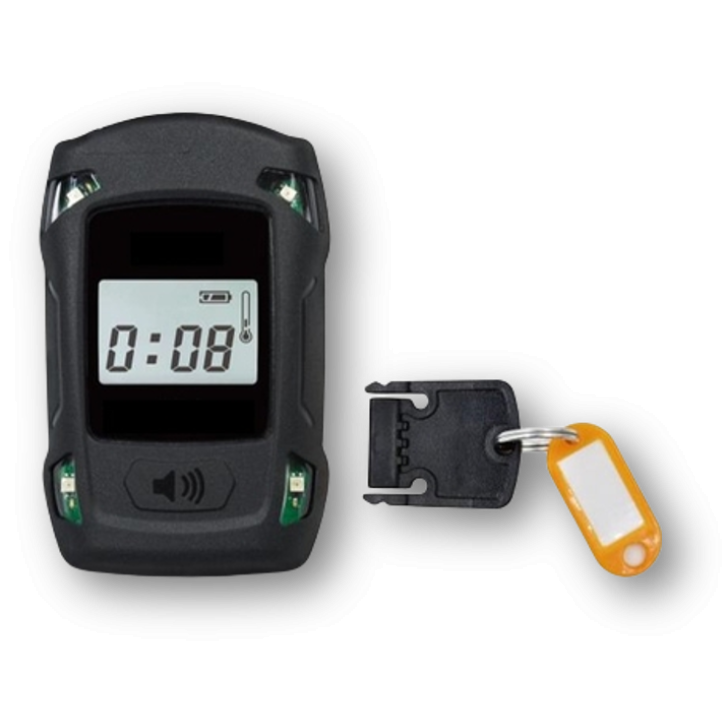

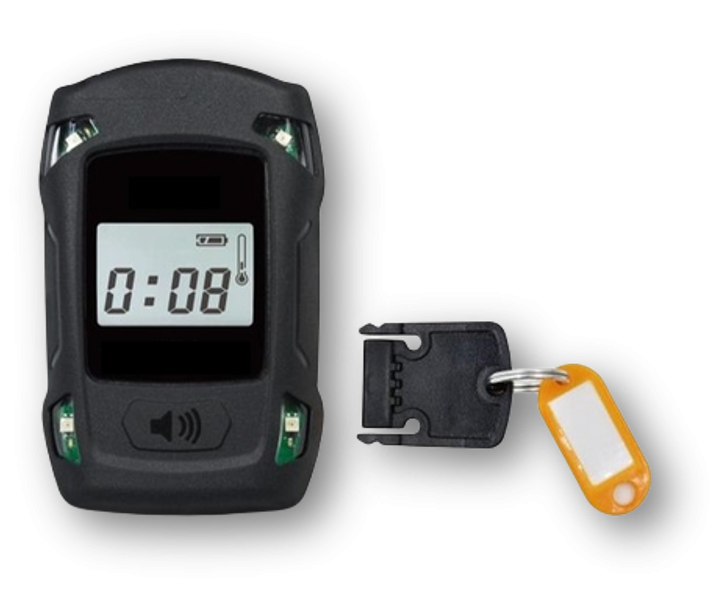

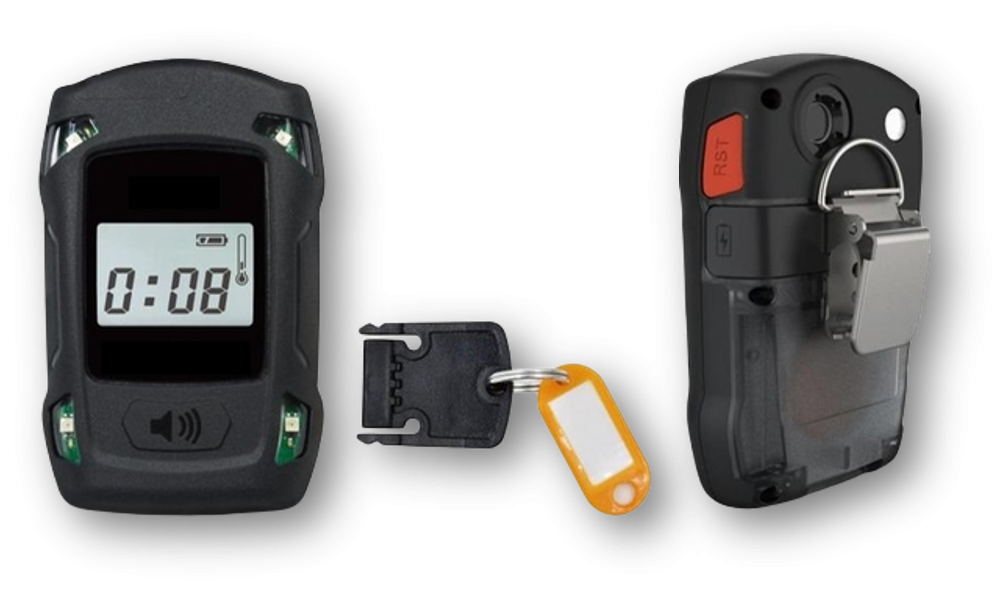

Personal Alarm RHJ600-E
= PERSONAL SAFETY ALARM FOR FIRE RESCUE, SEARCH & RESCUE, TUNNEL EXPLORATION & OTHER CONFINED SPACE WORK丨RHJ600-E =
«Main Features«
- One-button SOS alarm, linkage alarm -
- Real-time detection of leakage signals within 1 meter -- Audio and visual alerts based on electric field strength -- Directional light positioning and mutual search and rescue -- Waterproof, explosion-proof, and high-temperature sensing -
«Specification«
Size
75x117x52mm
Weight
≤280g
Strong alarm sound level intensity
100.9dB
Continuous working time
>24h (Do not use thermal imaging)
Strong alarm time
600 min
Explosion-proof grade
Ex ia IIC T3 Ga
Battery
1200mAh
Operating Voltage
7.4V
Operating temperature
-40℃~ 70℃
Relative humidity
-
Protection class
IP68
Electric leakage detection distance
≥1m
Electric leakage detection angle
160°
Earth leakage detection voltage
220V~380V~2400V and above
ADD TO QUOTE
View product
E-Gear
Optical Rescue & Escape Light Line System
= OPTICAL FIBER FIRE RESCUE LIGHTING LINE =
In environments with low visibility such as fire and smoke, the luminous wire used t o guide the escaperoute, which consists of a power supply system, a luminous line body, and a winding turntable.
«Main Features«
- Optical fiber transmission -
- Photoelectric separation technology -
- Free surface accurate light distribution -
- Uncharged light cable, can be used underwater -
- Continuous luminous brightness not less than 10cd/m2 -
- Choice of length: 50m / 100m / 200m / 300m / 500m -
- Type of system: Conventional / Explosion Proof / Communication / Portable (Customised) -
«Light Line Structure«
«Application Scenarios«
= BUILDING RESCUE =
= UNDERGROUND PASSAGE RESCUE =
= UNDERWATER RESCUE =
«Specification«
Size
305 x 215 x 406mm (conventional 100m / 200m / 300m type)
293 x 214 x 400mm (explosion proof 100m / 200m type)
200 x 200 x 100mm (portable 50m type, by customization only)
Line Diameter
3.5mm (conventional type)
4.6mm (communiction type)
Weight
4.5kg±2% (conventional 100m type)
5.6kg±2% (explosion proof 100m type)
>2kg (portable 50m type)
Luminous Material
SiO2
Line Material
Quartz fiber, Steel wire rope, Plastic PVC
Line Length
50m / 100m / 200m / 300m / 500m
Continuous operationg hours
>14 hours (constant-on)>28 hours (flash)
Photoelectric conversion efficency
30~35%
Battery Type
Rechargable Li-ion Battery
Battery Capacity
10.4Ah
Operating voltage
Input DV12V, 0V
Line working current
0V
Flashing Frequency
1.5Hz
Tensile Strength
>1100N (metal wire only)
Compressive Strength
Pass
Waterproofness
IP66 (conventional type)
IP67 (explosion proof type)
Max surface temperature
No temperature rise (same as environmental temperature)
Certification
GB 26783-2011
Ex ic op is IIC T4 Gc (explosion proof type only)
Ex op is tc IIIC T130℃ Dc (explosion proof type only)
