E-Gear
RHJ800
= PERSONAL SAFETY ALARM FOR FIRE RESCUE, SEARCH & RESCUE, TUNNEL EXPLORATION & OTHER CONFINED SPACE WORK丨RHJ800 =

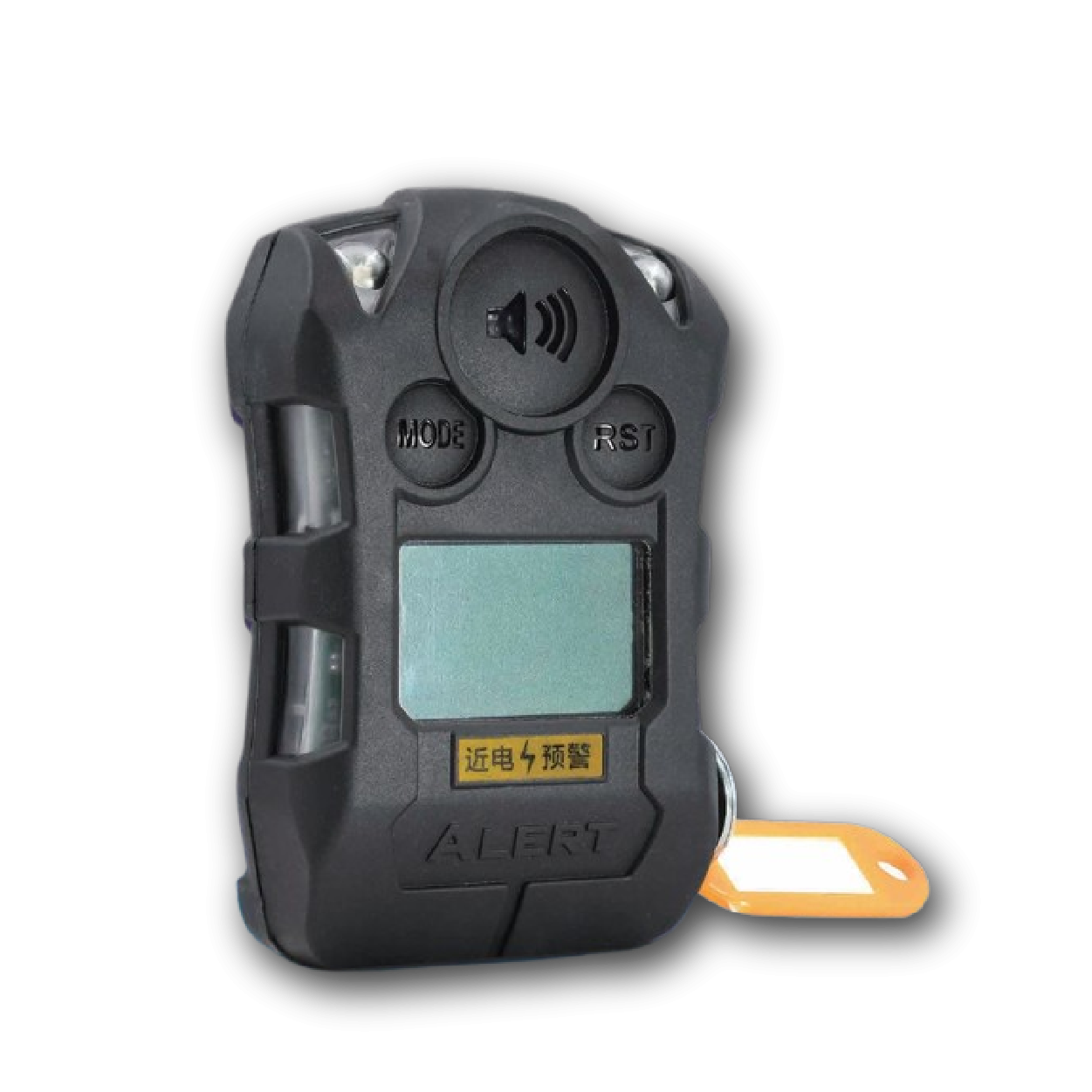

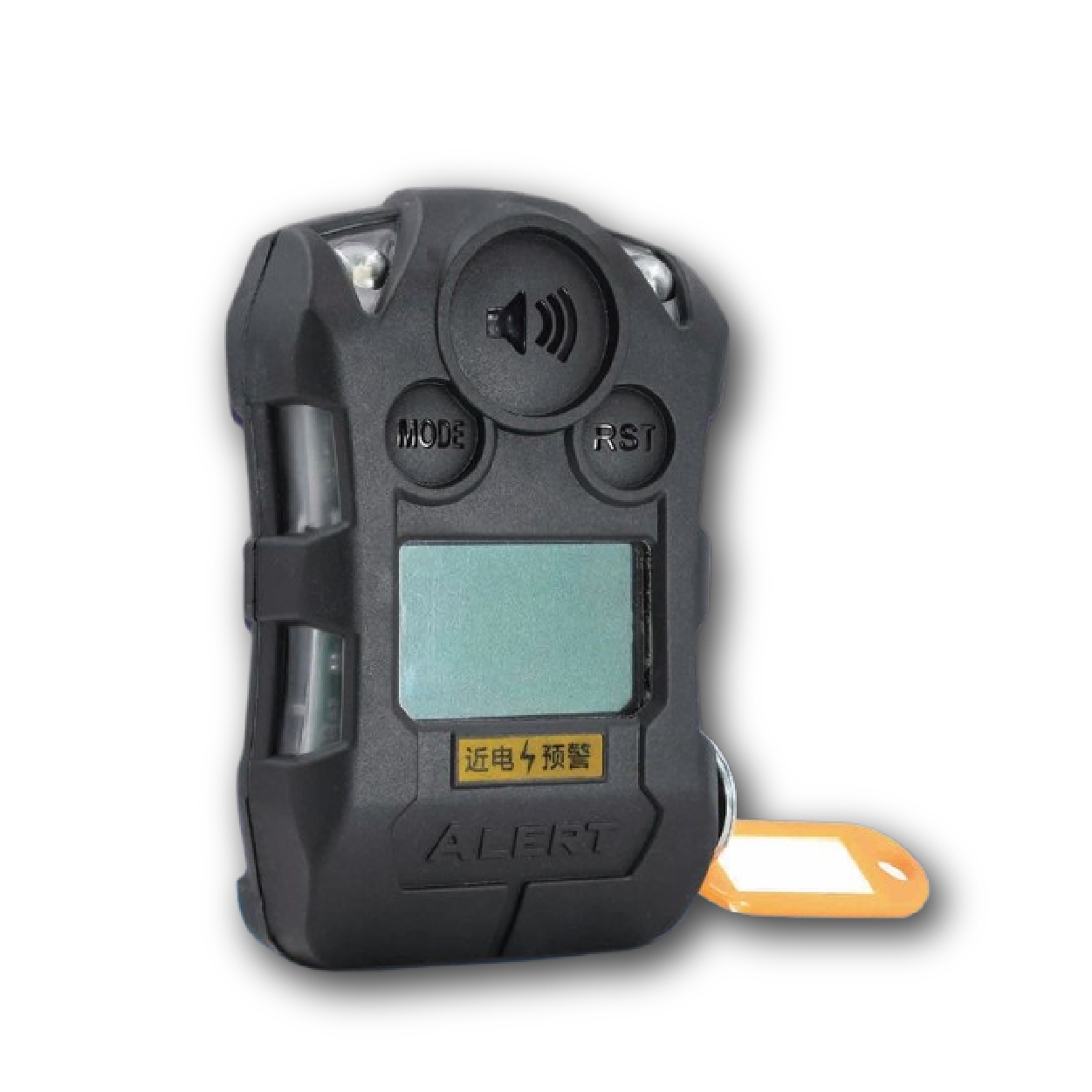

RHJ800 Fireman Alarm is small in size and sturdy in structure. It is an essential emergency alarm equipment for personnel working in dangerous situations.
It can realize functions such as distress calls and on-site alarms.
Comply with GB27900-2011 "Firemen's SOS" standard.
«Main Features«
- SOS -
- Timer -
- Lighting -
- LCD display -
- Manual alarm -
- Standstill alarm -
- Orientation light -
- Quick key switch -- Static pre-alarm -- Low battery alarm -- High temperature alarm -- Fast ID registration -
«Specification«
Size
68×109×45mm
Weight
≤200g
Pre-alarm sound level intensity
102dB
Alarm sound level intensity
102dB
Continuous alarm time
800 min
Stand-by time
200hr
Explosion-proof
Ex ia IIC T3 Ga
Battery
1200mAh
Operating Voltage
7.4V DC
Operating temperature
-25℃~ 70℃
Relative humidity
95％RH
ADD TO QUOTE
View product
New item
E-Gear
Optical Rescue & Escape Light Line System
= OPTICAL FIBER FIRE RESCUE LIGHTING LINE =
In environments with low visibility such as fire and smoke, the luminous wire used t o guide the escaperoute, which consists of a power supply system, a luminous line body, and a winding turntable.
«Main Features«
- Optical fiber transmission -
- Photoelectric separation technology -
- Free surface accurate light distribution -
- Uncharged light cable, can be used underwater -
- Continuous luminous brightness not less than 10cd/m2 -
- Choice of length: 50m / 100m / 200m / 300m / 500m -
- Type of system: Conventional / Explosion Proof / Communication / Portable (Customised) -
«Light Line Structure«
«Application Scenarios«
= BUILDING RESCUE =
= UNDERGROUND PASSAGE RESCUE =
= UNDERWATER RESCUE =
«Specification«
Size
305 x 215 x 406mm (conventional 100m / 200m / 300m type)
293 x 214 x 400mm (explosion proof 100m / 200m type)
200 x 200 x 100mm (portable 50m type, by customization only)
Line Diameter
3.5mm (conventional type)
4.6mm (communiction type)
Weight
4.5kg±2% (conventional 100m type)
5.6kg±2% (explosion proof 100m type)
>2kg (portable 50m type)
Luminous Material
SiO2
Line Material
Quartz fiber, Steel wire rope, Plastic PVC
Line Length
50m / 100m / 200m / 300m / 500m
Continuous operationg hours
>14 hours (constant-on)>28 hours (flash)
Photoelectric conversion efficency
30~35%
Battery Type
Rechargable Li-ion Battery
Battery Capacity
10.4Ah
Operating voltage
Input DV12V, 0V
Line working current
0V
Flashing Frequency
1.5Hz
Tensile Strength
>1100N (metal wire only)
Compressive Strength
Pass
Waterproofness
IP66 (conventional type)
IP67 (explosion proof type)
Max surface temperature
No temperature rise (same as environmental temperature)
Certification
GB 26783-2011
Ex ic op is IIC T4 Gc (explosion proof type only)
Ex op is tc IIIC T130℃ Dc (explosion proof type only)
ADD TO QUOTE
View product
