= MultiPurpose Moving Platform =

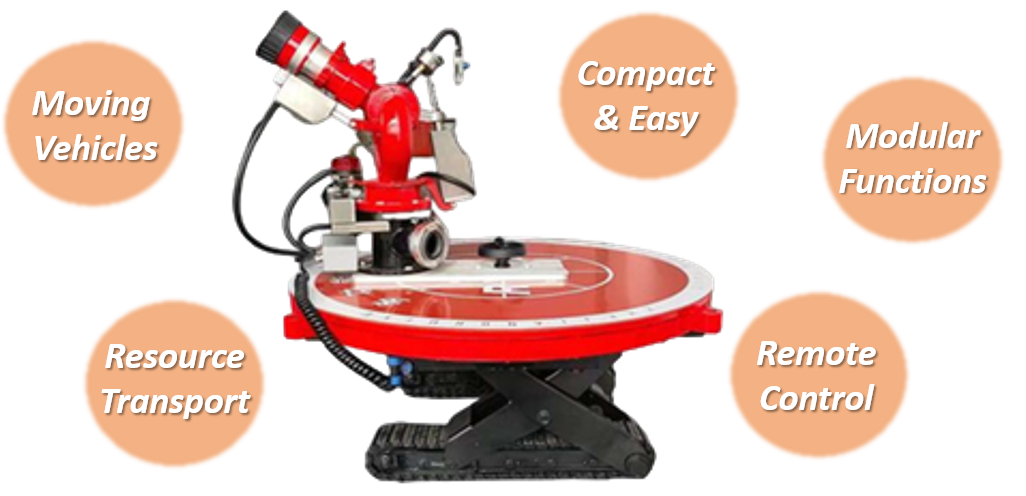

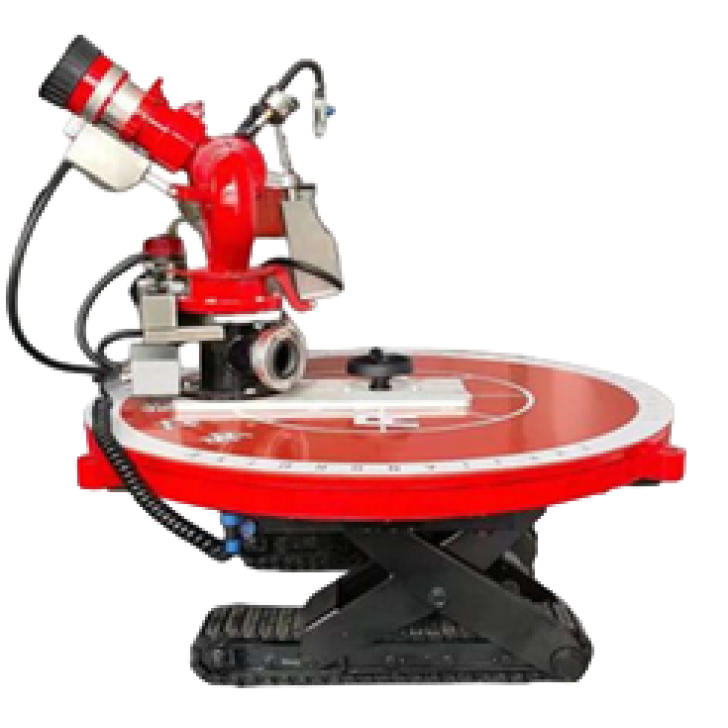

E-Gear Multipurpose Moving Platform is a multifunctional, portable, and practical moving equipment.

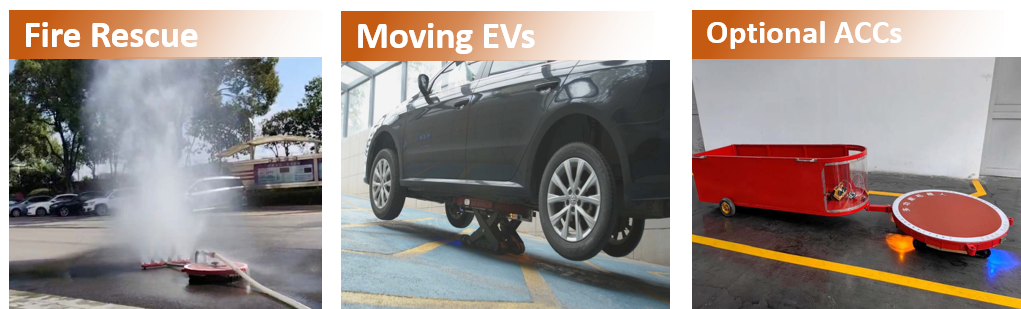

The unique folding body design, large carrying capacity, and standardized interface allow the platform to be carried in vehicles to assist fire and rescue departments in emergency vehicle relocation and heavy object transport.
It can also be quickly equipped with various functional modules, serving as a multi-functional transportation tool for firefighting, fire detection, smoke extraction, bomb disposal, and lighting.
«Main Features«
- Compact in size -
- Modular design -
- Crawler track design -
- 360° turning -
- Direction lights -
- Radar detector for anti-collision -
- Environmental temperature detection -
- GPS/Beidou dual-mode positioning -
- Real time remote control and video transmission in a 4G network -
- Multiple devices connection -
- Optional functions/accessories:
- Extension Rack, Water Cannon, Gas Detector, TIC -
«Video Demo: Extinguishing EV Fire«
«Specification«
|
Size (W X L X H) |
1115 x 1115 x 400 mm (±2%) |
|
Weight |
≤180kg ±2% |
|
Loading Weight |
2500 kg (max. 3000 kg) |
|
Max. Speed |
≥0.9m/s |
|
Lifting Height |
120mm ~ 400mm |
|
Lifting Speed |
≥12mm/s |
|
Platform Turning Speed |
4.2°/s |
|
Moving Distance |
≥2km (Loaded); ≥10km (Unloaded) |
|
Sloping Angle |
≤8° (Loaded) ; ≤20° (Unloaded) |
|
Max. Obstacle Height |
40mm |
|
Power |
DC48V, 1.5kWh rechargeable lithium-ion Built-in Battery |
|
Standby Time |
≥120 hours |
|
Continuous Working Time |
≥5 hours |
|
Operating Temperature |
-20℃ ~ 60℃ |
|
Storage Temperature |
-40℃ ~ 70℃ |
|
Relative Humidity |
0% ~ 90% |
|
IP Rating |
IP65 |
